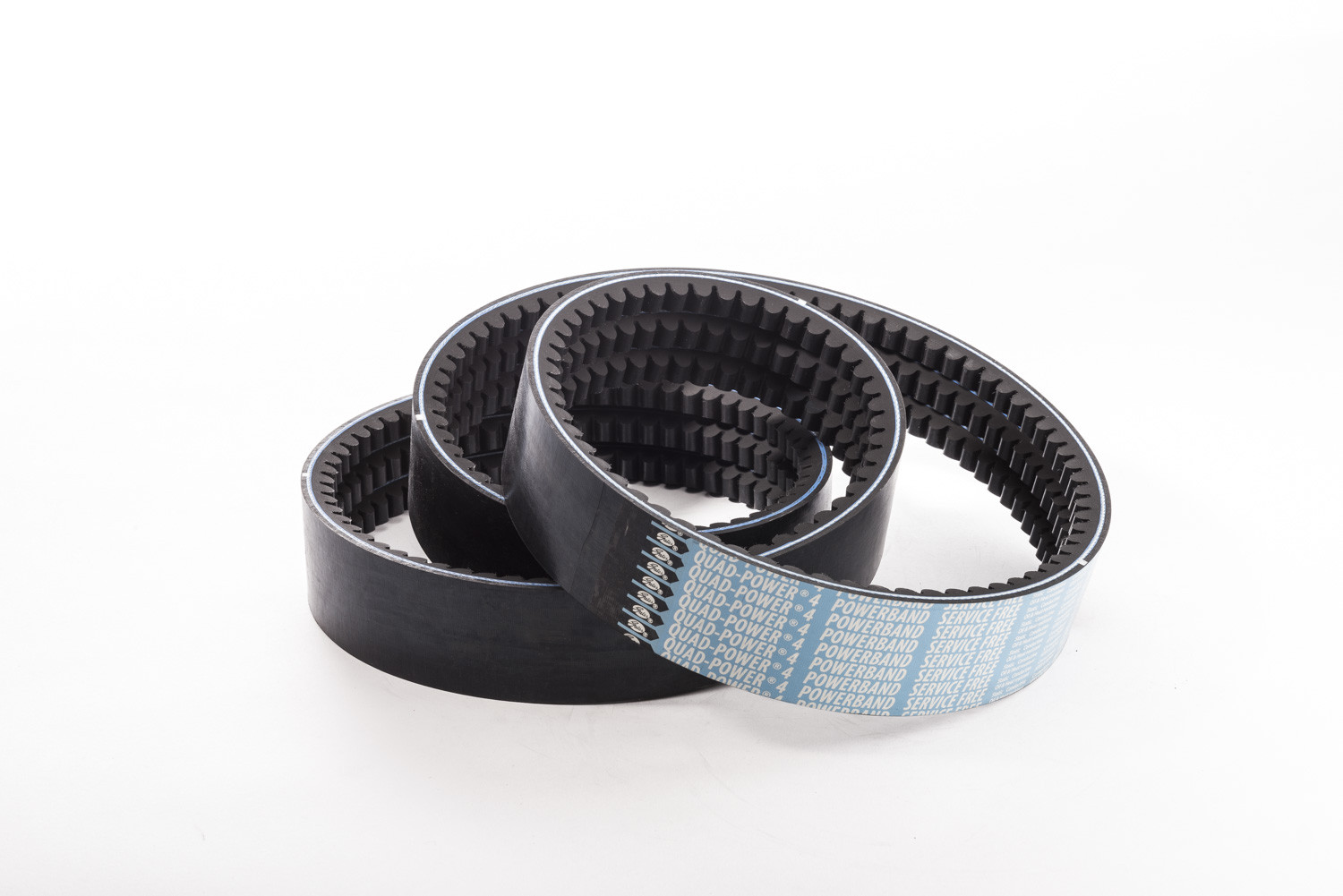

XPZ1270/2 GATES Quad-Power™ 4 Powerband™ Banded V-belts GATES

Specifications

• Weight (kg/m) 0.202
• Belt type Narrow raw edge
• Outer length (mm) 1288
• Belt height (mm) 8
• Belt width (mm) 20
• Standard DIN7753
• Minimum pulley diameter (mm) 63
• Antistatic No
• Inner length (mm) 1219
• Track length (mm) 1270
• Belt material EPDM
• Cord material Polyester
• Units pc
• Belt profile XPZ
• Ribsteek (S) (mm) 12
• Ribbreedte riem (mm) 2
• Weight (kg) 0.202
• Description (EN) Gates® PowerBand® belts are engineered for drives that are subject to pulsating loads, shock loads or extreme vibrations. By joining several Quad-Power® 4 V-belts together the Quad-Power® 4 PowerBand® offers a maintenance-free solution for drives where single belts vibrate, turn over or jump off the pulleys. It comes with all of the advantages of the single belt: this SERVICE FREE EPDM belts are designed to extend product life time eliminating costly downtime for re-tensioning, repair and replacement. PowerBand® construction is built as one solid unit, controlling the belt-to-belt distance and preventing sideways bending. Service-free PowerBand® V-belt with high stability on the toughest drives. Provides excellent resistance against vibrations and shock loads.
• Minimum temperature (°C) -50
• Maximum temperature (°C) +130
• EAN code 5414465984983
• Custom code 4010.3200.00
• Number of ribs 2
• Status Normal
• Colour BLACK
• Country of origin FR
• Construction Banded
• beltInside Notched
• beltBackSide Smooth
• OC(mm) 1275
• Corner 40
• Reach/ROHS Compliance REACH and RoHS 2
• ISO1 standard 1813
• ISO2-standaard 4184
• Brand GATES
• Weight (kg/m) 0.202
• Outer length (mm) 1288
• Belt width (mm) 20
• Antistatic No
• Inner length (mm) 1219
• Belt material EPDM
• Belt profile XPZ
• Weight (kg) 0.202
• Minimum temperature (°C) -50
• Maximum temperature (°C) +130
• Country of origin FR
