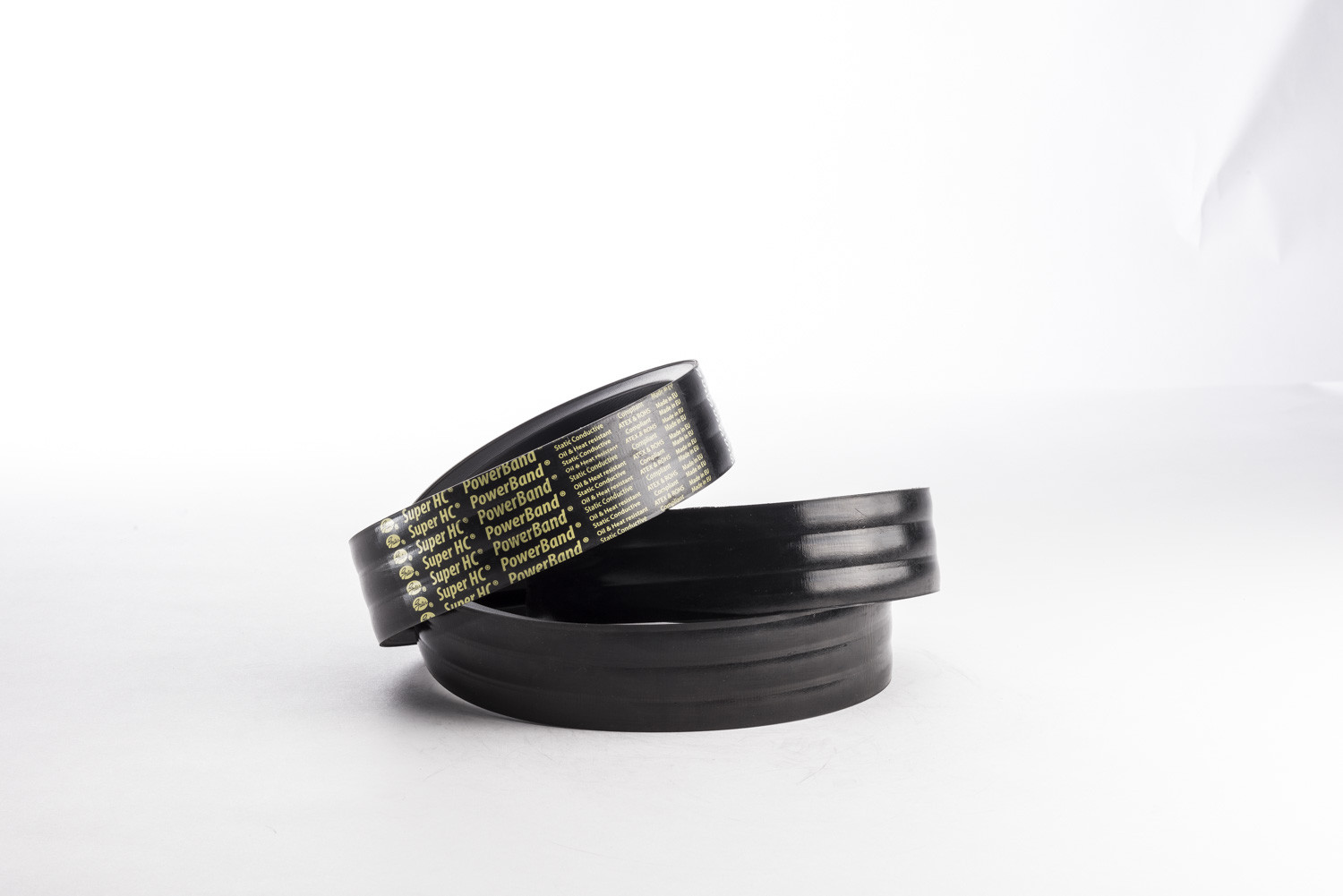

SPB4250/12 GATES Super HC™ Powerband™ Banded V-belts GATES

Specifications

• Brand GATES
• EAN Code 5412571084498
• Artikelnummer leverancier 9381-94212
• Spruit Artikelnummer 4G000SPB4250/12
• Weight (kg/m) 15.72
• Belt type Narrow wrapped
• Outer length (mm) 4272
• Belt height (mm) 13
• Belt width (mm) 192
• Standard DIN/ISO
• Minimum pulley diameter (mm) 140
• Antistatic No
• Inner length (mm) 4190
• Track length (mm) 4250
• Belt material Chloroprene
• Cord material Polyester
• Units pc
• Belt profile SPB
• Rib stitch (S) (mm) 19
• Belt rib width (mm) 12
• Weight (kg) 15.72
• Description (EN) When uptime is a must, equip your drives with Gates® Super HC™ PowerBand™ belts. Super HC™ PowerBand™ belts offer a solution for drives where single belts vibrate, turn over or jump off the pulleys. With a superior combination of flex and load, the PowerBand™ construction consists of multiple V-belts joined together by a permanent, high strength tie band that functions as a single unit. This means a tougher, more stable solution with even load distribution and each strand fitting securely in the sheave groove. Highly resistant to tensile and flexing forces, fatigue and shock loads. High stability and smooth running on the toughest drives. Temperature Range: -30°C to +60°C (-22°F to +140°F).
• Minimum temperature (°C) -30
• Maximum temperature (°C) +60
• Custom code 4010.3900.90
• Number of ribs 12
• Status Normal
• Colour BLACK
• Country of origin PL
• Construction Bandless
• beltInside Smooth
• beltBackSide Smooth
• OC(mm) 4289
• Corner 40
• Reach/ROHS Compliance REACH and RoHS 2
• ISO1 standard 1813
• Brand GATES
