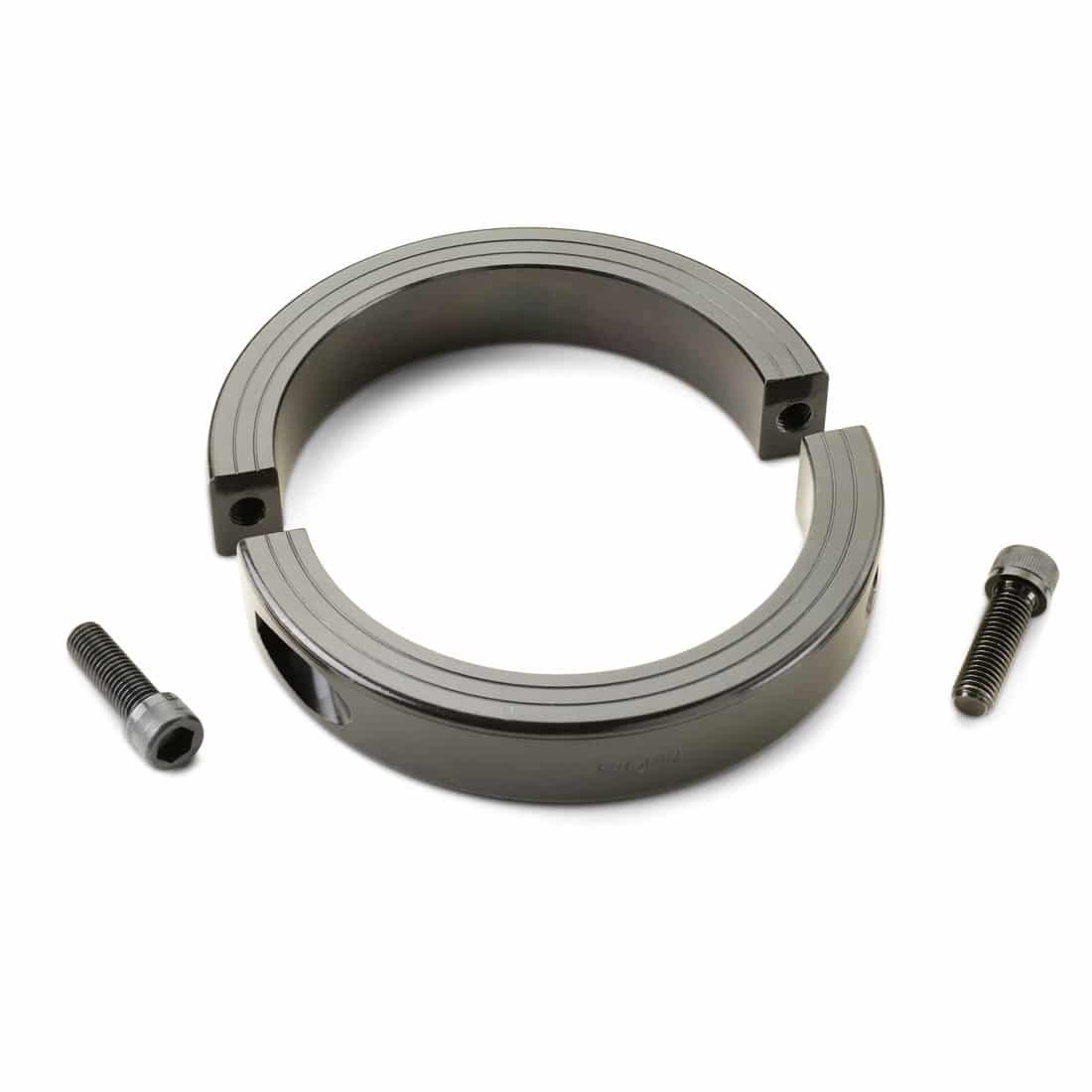

MSPH-135-F Ruland Manufacturing Shaft collar Ruland Manufacturing
Artikelnummer: 610MSPH135F
Incl. VAT
On request
Our service employee will be happy to help you!
Can't figure it out right away? We're happy to help you with all your questions.
072 541 2000 Email your question
Specifications
- Outer diameter (mm) 180
- Weight (kg) 2.6275
- Bore Type Round
- Original type Shaft Collar - Heavy Duty
- Steel Material Black Oxide Steel
- widthWMM 32
- UNSPSCcode 31162811
- Bore B1 (mm) 135
- Clearance diameter (mm) 187.4
- Material specification Heavy Duty Steel
- Screw type Alloy Steel
- Screw finish Black Oxide
- UPC 634529133347
- Tariff code 8483.60.8000
- ForgedClampScrew M12 x 40
- NumberofScrewsEa 2
- ScrewLocation® 81.50 mm
- WidthTolerance +0.076 mm / -0.254 mm
- BoreTolerance +0.102 mm / -0.000 mm
- SeatingTorque 135 Nm
- FinishSpecification Black Oxide
- BoreStyle Round
- Style Clamp
- ShaftTolerance +0.000 mm / -0.025 mm
- FasteningDimensions Metric
- ISO 9001 (2008) Yes
- REACH Yes
- ROHS2 Yes
- ConflictMinerals Yes
- RecommendedGap 3.18 mm
- AxialLoad 88950 N
- Brand Ruland Manufacturing
Description
MSPH-135-F Ruland Manufacturing Shaft collar
