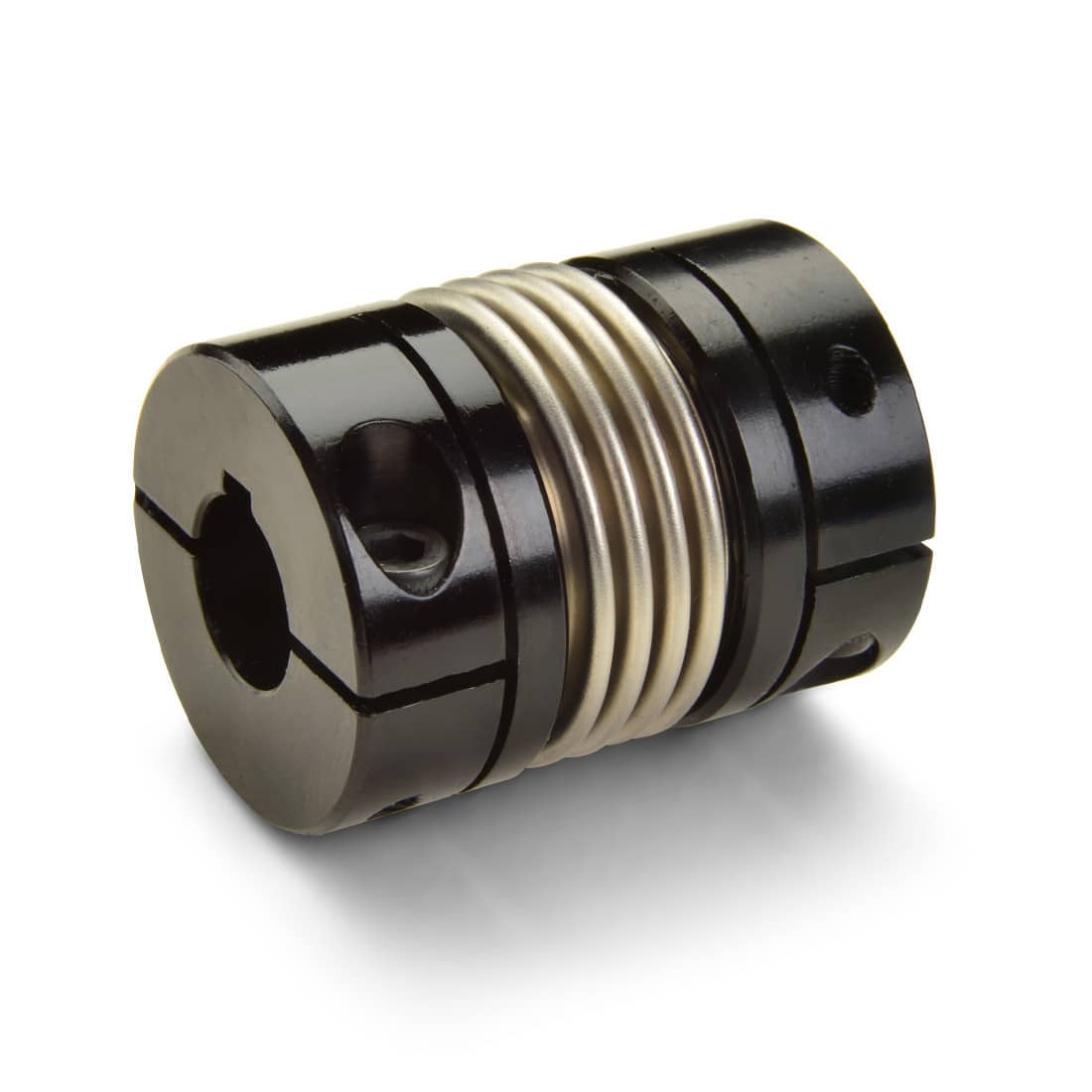

MBCK33-11-8-A Ruland Manufacturing Bellow couplings Ruland Manufacturing
Artikelnummer: 610MBCK33118A
Incl. VAT
On request
Our service employee will be happy to help you!
Can't figure it out right away? We're happy to help you with all your questions.
072 541 2000 Email your question
Specifications
- Material Aluminium
- Outer diameter (mm) 33.3
- Outside Diameter (Inch) 1.313
- Weight (kg) 0.07
- Maximum speed (rpm) 10000
- Bore B1 (mm) 11
- Bore B2 (mm) 8
- Angular misalignment (deg) 1.5
- Parallel misalignment (mm) 0.15
- Screw type Alloy Steel
- Screw finish Black Oxide
- Seating torque (Nm) 2.1
- UPC 634529165195
- Tariff code 8483.60.8000
- ForgedClampScrew M3
- NumberofScrewsEa 2
- BoreTolerance +0.03 mm / -0.00 mm
- FinishSpecification Anodize
- Style Clamp
- ShaftTolerance +0.000 mm / -0.013 mm
- FasteningDimensions Metric
- ISO 9001 (2008) Yes
- REACH Yes
- ROHS2 Yes
- ConflictMinerals Yes
- MomentofInertia 1.133 x 10-5 kg-m2
- Length(L) 1.700 in (43.2 mm)
- Keyway(K1) 4 mm
- Keyway(K2) 2 mm
- StaticTorqueInput 13.6 Nm
- NonReversingTorqueInput 6.80 Nm
- ReversingTorqueInput 3.40 Nm
- TorsionalStiffnessInput 45 Nm/Deg
- AxialMotionInput 0.40 mm
- Bore1ShaftPenetrationInput 20.4 mm
- BellowsAttachmentMethod Epoxy
- UNSPC 31163018
- Brand Ruland Manufacturing
Description
MBCK33-11-8-A Ruland Manufacturing Bellow couplings
