AA90 GATES

Specificaties

• Merk GATES
• EAN-code 5412571060683
• Artikelnummer 905200090
• Spruit Artikelnummer 4G000AA2340
• Type riem Classical wrapped double sided
• Hoogte riem (mm) 10
• Breedte riem (mm) 13
• Antistatisch Nee
• Spoorlengte (mm) 2337
• Materiaal riem Chloroprene
• Koordmateriaal Polyester
• Eenheden pc
• Riemprofiel AA
• Gewicht (kg) 0.354

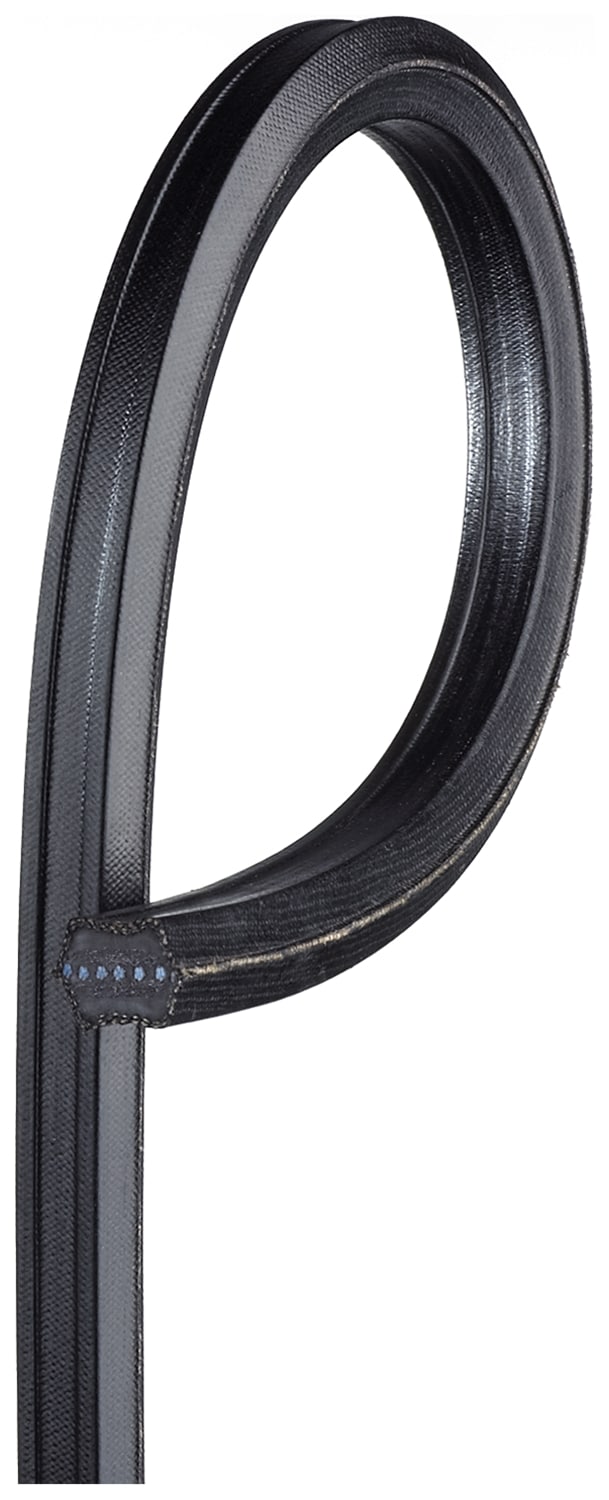

• Omschrijving (EN) Gates® Hi-Power™ Dubl-V belt is designed with a unique recessed top and bottom to maintain sidewall contact, while remaining flexible for belt drive applications that require power transmission from both sides of the belt. Use this Gates solution for all industrial accessory belt drive system applications that require rotation reversal on some driven shafts. It uses flex-bonded tensile cords, which are highly resistant to flexing forces, and a protective Flex-Weave™ cover. It is the ideal solution for accessory belt drives (drives with counter rotating shafts) where power is transmitted from both the top and the bottom of the belts. Gates curves provide proper cord support and full contact with the sheave-groove for uniform loading, uniform wear, and increased belt life. Flex-Bonded cords are strongly bonded to the body of the belt resulting in equal load distribution and the absorption of bending stress without cord deterioration.
• Minimale temperatuur (°C) -30
• Maximale temperatuur (°C) +60
• HS Code 4010.3900.90
• Number of ribs 1
• Status Normal
• Colour BLACK
• Land van herkomst MX
• Constructie Bandless
• beltInside Smooth
• beltBackSide Smooth
• Hoek 36
• ISO1-standaard 1813
• Merk GATES
• Breedte riem (mm) 13
• Antistatisch Nee
• Materiaal riem Chloroprene
• Riemprofiel AA
• Gewicht (kg) 0.354
• Minimale temperatuur (°C) -30
• Maximale temperatuur (°C) +60
• Land van herkomst MX
