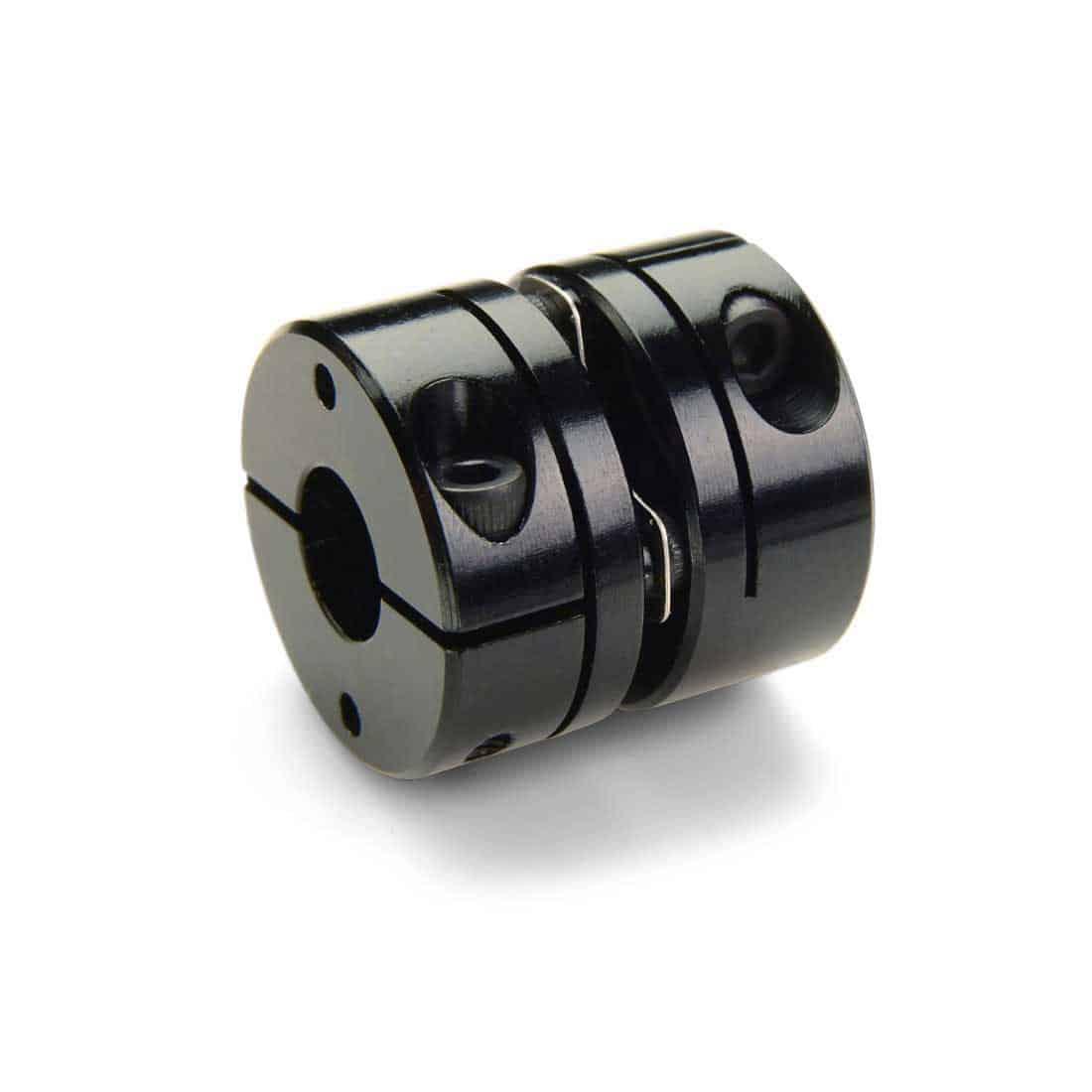

Ruland Manufacturing Disc couplings Ruland Manufacturing

Specificaties

• Materiaal Aluminium
• Buitendiameter (mm) 33.3
• Gewicht (kg) 0.1385
• Bore Diameter Tolerance +0.001 in / -0.000 in
• Maximum speed (rpm) 10000
• Lenght L (Inch) 1.313
• lenght L (mm) 33.3
• Angular misalignment (deg) 1
• Coupling shaft tolerance +0.0000 in / -0.0005 in
• Screw type Alloy Steel
• Screw finish Black Oxide
• Seating torque (Nm) 2.1
• UPC 634529082355
• Tariff code 8483.60.8000
• boreB1Inch 0.5000
• outsideDiameterInInput 1.313
• ForgedClampScrew M3
• NumberofScrewsEa 2
• FinishSpecification Anodize
• Style Clamp
• FasteningDimensions Metric
• ISO 9001 (2008) Yes
• REACH Yes
• ROHS2 Yes
• ConflictMinerals Yes
• MomentofInertia 0.0331 lb-in²
• boreB2Inch 0.3750
• StaticTorqueInput 100 lb-in
• NonReversingTorqueInput 50 lb-in
• ReversingTorqueInput 25 lb-in
• TorsionalStiffnessInput 313 lb-in/Deg
• ParallelMisalignmentInch 0.00 in
• AxialMotionInput 0.008 in
• Bore1ShaftPenetrationInput 0.635 in
• UNSPC 31163008
• couplingType Single
• Bore2ShaftPenetrationInput 0.635 in
• Merk Ruland Manufacturing
