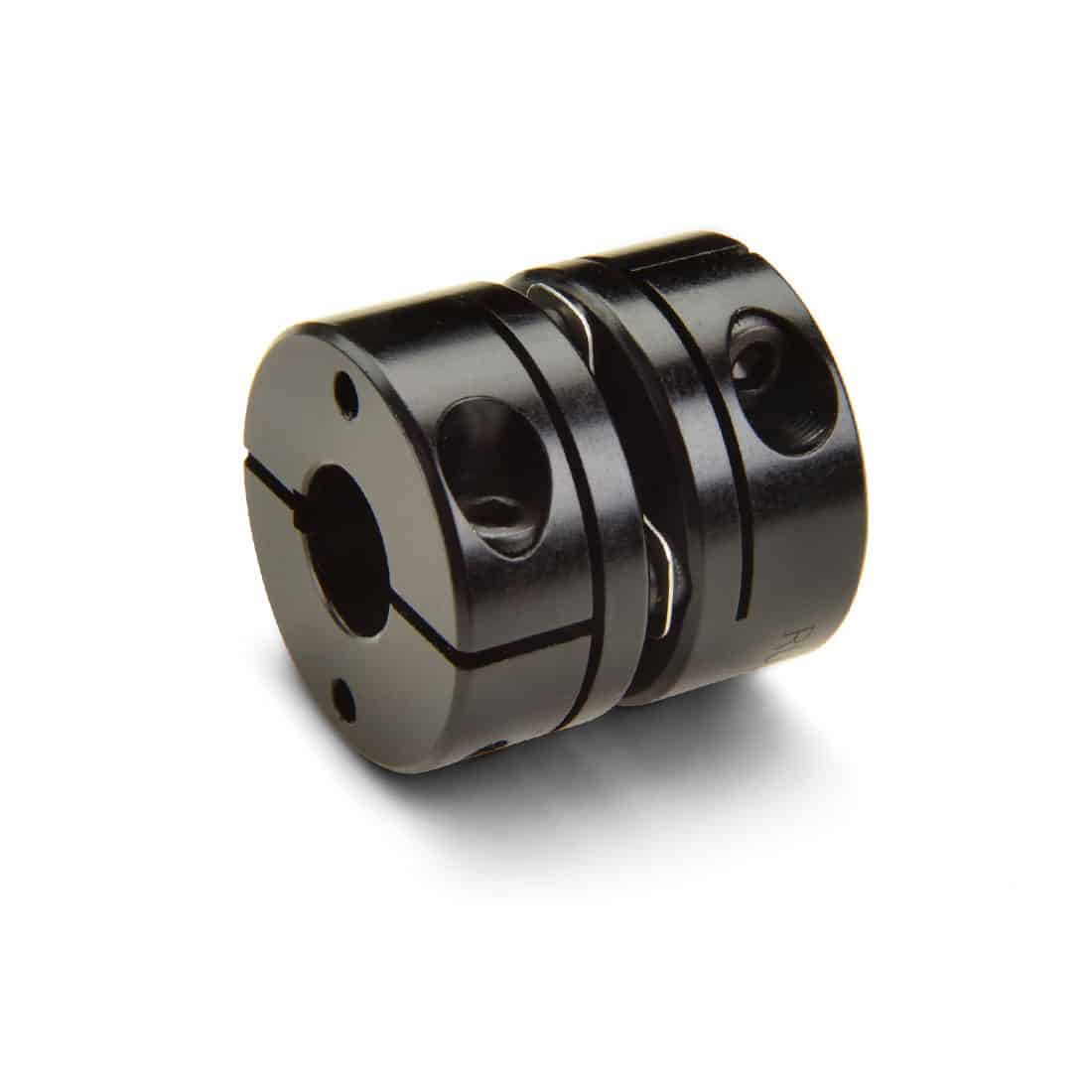

Ruland Manufacturing Disc couplings Ruland Manufacturing

Specificaties

• Materiaal Aluminium
• Buitendiameter (mm) 57.2
• Gewicht (kg) 0.7506
• Bore Diameter Tolerance +0.001 in / -0.000 in
• Maximum speed (rpm) 10000
• Lenght L (Inch) 2.313
• lenght L (mm) 58.8
• Angular misalignment (deg) 1
• Coupling shaft tolerance +0.0000 in / -0.0005 in
• Screw type Alloy Steel
• Screw finish Black Oxide
• Seating torque (Nm) 16
• UPC 634529205013
• Tariff code 8483.60.8000
• boreB1Inch 0.7500 in
• outsideDiameterInInput 2.25
• ForgedClampScrew M6
• NumberofScrewsEa 2
• FinishSpecification Anodize
• Style Clamp
• FasteningDimensions Metric
• ISO 9001 (2008) Yes
• REACH Yes
• ROHS2 Yes
• ConflictMinerals Yes
• MomentofInertia 0.5205 lb-in²
• Keyway(K1) 3/16 in
• Keyway(K2) 3/16 in
• boreB2Inch 0.6250
• StaticTorqueInput 450 lb-in
• NonReversingTorqueInput 225 lb-in
• ReversingTorqueInput 112.5 lb-in
• TorsionalStiffnessInput 1000 lb-in/Deg
• ParallelMisalignmentInch 0.00 in
• AxialMotionInput 0.015 in
• Bore1ShaftPenetrationInput 1.085 in
• UNSPC 31163008
• couplingType Single
• Bore2ShaftPenetrationInput 1.085 in
• Merk Ruland Manufacturing
