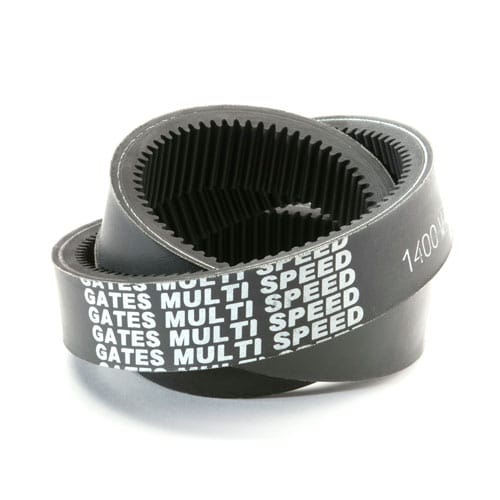

2322V364 GATES MULTI-SPEED Variable speed belts GATES

Specificaties

• Hoogte riem (mm) 9
• Breedte riem (mm) 37
• Antistatisch Ja
• Spoorlengte (mm) 925
• Materiaal riem Polychloroprene (Neoprene)
• Koordmateriaal Polyester
• Riemprofiel RVS-R
• Gewicht (kg) 0.499
• Omschrijving (EN) Gates Multi-Speed belt provides top performance on variable speed drives. It adjusts itself to the pulley groove without difficulty, providing a wide range of speeds and speed ratios. In addition to the standard Multi-Speed belt line, special sizes (top width, thickness and angle) are available on request. The notches ensure maximum heat dispersion, considerably decreasing running temperatures. Strong transverse rigidity offers high resistance to distortion of the belt in the pulley. Even load distribution and wear reduction.
• Minimale temperatuur (°C) -34
• Maximale temperatuur (°C) +82
• EAN-code 5412571183177
• Aangepaste code 4010.3200.00
• Status Normal
• Colour BLACK
• Land van herkomst MX
• Constructie Bandless
• beltInside Notched
• beltBackSide Smooth
• OC(mm) 943
• Hoek 22
• Merk GATES
• Breedte riem (mm) 37
• Antistatisch Ja
• Materiaal riem Polychloroprene (Neoprene)
• Riemprofiel RVS-R
• Gewicht (kg) 0.499
• Minimale temperatuur (°C) -34
• Maximale temperatuur (°C) +82
• Land van herkomst MX
